SealBoss ® provides commercial-grade, professional quality
concrete repair and waterproofing products, equipment and
accessories for commercial and residential applications.
|
|
Static mixer included
For Larger Quantities call SealBoss directly at
714-662-4445
ADVANTAGES
- Insensitive to moisture before, during and after cure
- High-modulus, high-strength, structural gel adhesive
- Excellent adhesion to concrete, masonry, metals, wood and most structural materials.
- Gel consistency ideal for vertical and overhead applications. Easy to mix 1: 1 ratio between components
- Extremely Fast Setting and high early strength-developing adhesive.
RANGE OF APPLICATION
- Structural bonding of concrete, masonry,
metals, wood, etc.
- Grouting bolts, dowels, pins, vertical and
overhead, for extremely rapid setting, fast turn
around times
- Seals cracks and around injection ports prior to
pressure-injection grouting
- Interior, exterior, vertical and overhead repair of
concrete as a super fast setting epoxy mortar
binder.
ADVANTAGES
- Insensitive to moisture before, during and after
cure
- High-modulus, high-strength, structural gel
adhesive
- Excellent adhesion to concrete, masonry,
metals, wood and most structural materials.
- Gel consistency ideal for vertical and overhead
applications. Easy to mix 1: 1 ratio between
components
- Extremely Fast Setting and high early
strength-developing adhesive.
TYPE OF MATERIAL

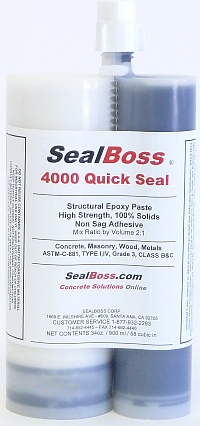

SealBoss 4000 QuickSeal-Epoxy
Paste is a 100% solids, high modulus, non-sag, non-shrink two-component epoxy
adhesive that bonds to concrete and other surfaces. It
meets ASTM-C-881, Type I and IV, Grade 3 Classes B and C
for Epoxy Resin Adhesives. It meets USDA specifications for
use in food processing areas.
PROCESSING
To anchor bolts, dowels, and pins
Annular space around bolt tested at 1/8 inch; depth of
embedment is typically 10-15 times the bolt diameter. See
cartridge for application instructions.
To seal cracks for injection grouping place the mixed material over the cracks to be pressure
injected and around each injection port. Allow sufficient time
to cure before pressure injecting.
As a structural adhesive
Apply the mixed 4500F QuickSeal-Epoxy Structural Gel
Epoxy to the mating or non-mating prepared substrates.
Work into the substrate for positive adhesion. Secure the
bonded unit firmly into place until the epoxy has cured.
Non-sag gel, no flow. Pot Life: Approx. 5-10
minutes. (100-gram mass)
Appearance: Compound A = White , Compound B = Grey.
Concrete Application Recommendations:
Surface Preparation:
Surface must be clean and sound. It may be dry or damp, but
free of standing water. Remove dust, grease, curing
compounds, waxes, foreign particles, and disintegrated
materials.
Important Disclaimer:
SealBoss Corp. specifically does not guarantee the performance of product
where
4500F QuickSeal-Epoxy is used as an anchor or a structural
adhesive. Uses of that kind require special testing. Epoxy products are
subject to aging. Initial maximum strength may weaken over time.
Further substrate temperatures, UV-exposure, etc. need to be considered.
Technical Data:
Color (A+B) Grey
Viscosity (mixed) Gel
Mix Ration (by volume) 1:1
Pot Life 100 grams at 77
°F 5-10 min
Tack Free Thin Film at 77
° 1-2 hrs
Shrinkage ASTM C-883 Passes
Absorption 24 hours 0.12 %
Heat Deflection Temperature, ASTM D-648 129
°F
Bond Strength, ASTM C-882 14 days 3,250 psi
Compressive Strength, ASTM D-695 7 days 13,500 psi
Tensile Strength 73
°F, ASTM D-638 14 days 5,450 psi
Flexural Strength, ASTM D-790 5,882 psi
Shear Strength, ASTM D-732 4,900 psi
COVERAGE
22oz. cartridge yields 40 cu. in. of epoxy gel adhesive.
Shelf Life: 1 year in an original unopened container.
STORAGE
Store indoors at temperatures between 40-95 F.
PACKAGING
22oz. cartridges
